TYM - Water Leak Detector

Introduction

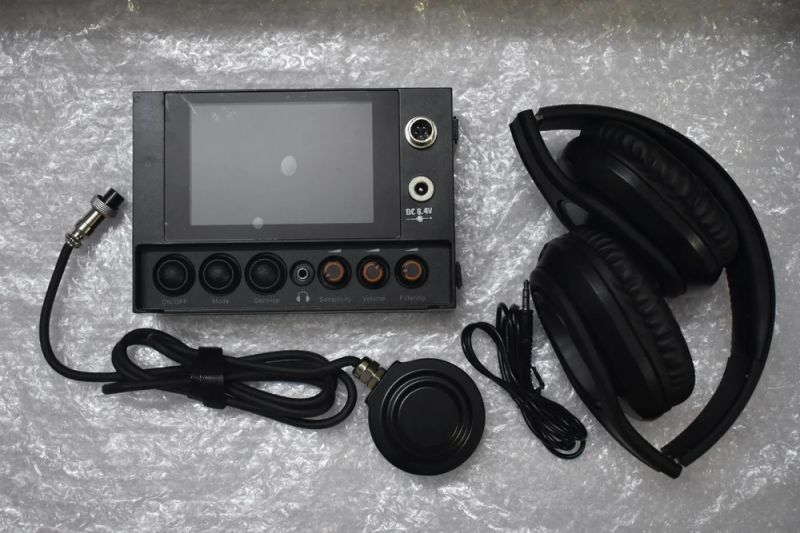

TYM-A series water leak detector is a new generation of intelligent leak detector specially designed for leakage of indoor pressure pipes. This series of instruments is suitable for leak detection of indoor tap water and floor heating pipes. It has keen sound and signal acquisition and analysis capabilities, and can quickly and accurately locate leaks. Equipped with a clear display screen and simple operation interface, it is convenient for users to understand the test results intuitively. Different detection modes and parameters can be set according to actual needs to adapt to various complex pipeline environments.

Working principle

TYM-A series indoor water leak detector is mainly used for indoor ground detection. The sensor collects pipe sounds and signals,the collected signals are processed by the host and displayed on the host machine in the form of waveform, spectrum, and intensity signal column. At the same time, the sound will be input to the earphones through the host, and the three knobs of sensitivity knob, sound knob and filter gear will be adjusted to cooperate with each other, and the leakage point will be located through "listening" and "seeing".

Description

• 【ON/OFF 】 button: Turn on/off the host.
• 【Mode】 button: Switch the display mode. Click once to switch the interface, and you can switch between the intensity, spectrum and waveform interfaces.
• 【Denoise】 button: The instrument turns on the noise reduction function by default. Press the button to turn off the noise reduction function.
• 【Headphone】 interface: used to connect headphones.
• 【Sensitivity】 Adjustment knob: Adjust the sensitivity of the display area. The higher the sensitivity, the larger the displayed value. Clockwise sensitivity +, counterclockwise sensitivity -.
• 【 Volume 】 Adjustment knob: Adjust the listening volume. Clockwise volume +, counterclockwise volume -
• 【Filtering】 adjustment knob: 4-le vel filter adjustment, the gear increases clockwise, and the envir onmental noise reduction effect is enhanced. Counterclockwise the gear decreases and the environmental noise reduction effect is weakened.
• 【Charging port】 used for charging the host.
• 【Aviation socket】 Connect the probe, and the navigation sockets must correspond one to one.
• 【Strap buckle】 Connect the strap.

Introduction

TYM-3A Al Smart Water Leak Detector is a high-precision instrument used for detecting leaks in indoor pressure pipelines. It is suitable for detecting leaks in indoor water supply and floor heating pressure pipelines. The instrument analyzes the collected sound and vibration frequency signals of the leak points using AI intelligent algorithms, filters and amplifies the effective signals, and achieves accurate positioning of the leaks. It solves the difficult problem of leak detection in indoor pressure pipelines,

Advantages

• AI intelligent assis tance makes leak de tection easy for beginner s
• Dual intelligent mo des of "listening" and "visual" accur ately locate leak points
• High sensitivit y sen sors for pre cise anti-interference detection
• D ual sensor configuration suitable for different application scenarios
• 7-inch touch screen for convenient operation
• Day/night mode selection to adapt to changes in ambient lighting.

Introduction

TYM-4A Tracer Gas Water Leak Detector is an intelligent water leakage detector designed for detecting small leaks in pressure pipelines using the hydrogen-nitrogen mixed gas inspection technology. This series of instruments is suitable for detecting small leaks in pressure pipelines such as tap water, fire pipeline, and heating. It uses the gas permeability under high pressure to collect gas signals of water pipeline leaks, achieving precise positioning and effectively solving the detection difficulties of small leaks in pressure pipelines.

Advantages

• Uni versal for outdoor use, ver satile
• Easy operation, fast localization of leaks
• Tracer gas inspec tion method, eas y localization of small leaks
• Day/night dual display modes, adapting to changes in ambient light

Introduction

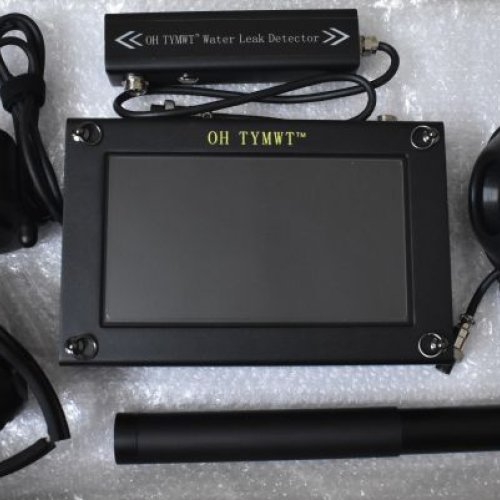

TYM-5A Outdoor Water Leak Detector is an intelligent water leak detection device specifically designed for leaks in outdoor pressure pipelines. This series of instruments is suitable for water leak detection in outdoor pipelines such as municipal water supply, fire pipeline, and heating. It achieves precise location by collecting and analyzing the sound and leak signals at the leak site, effectively solving the problem of leak detection in pressure pipelines.

Advantages

• Suitable for various outdoor water leak detection environments
• Water leak detection results can b e expor te d to a computer for easy leak detection report generation
• Day/night dual display mode to adapt to changes in ambient light
• Frequency can be individually adjusted according to user needs to reduce sound inter ference
• AI intelligent positioning mode, easy operation, quick location of leaks

Introduction

TYM-6A Indoor &Outdoor Water Leak Detector is an intelligent water leak detection device specifically designed for pressure pipeline water leakage. This series of instruments is suitable for the detection of water leakage in indoor and outdoor pressure pipelines such as tap water, fire pipeline, and heating. By collecting and analyzing the sound and leakage signals at the leak points, it achieves accurate positioning and effectively solves the problem of water leakage detection in pressure pipelines. It is a multifunctional indoor and outdoor intelligent pipeline leakage detector.

Advantages

• Suitable for indoor and outdoor water leak detection environments
• Water leak detection results can b e expor ted to a computer for easy leak detection report generation
• Day/night dual display mode to adapt to changes in ambient light
• Frequency can be individually adjusted according to user needs to reduce sound inter ference
• AI intelligent positioning mode, easy operation, quick location of leaks

Introduction

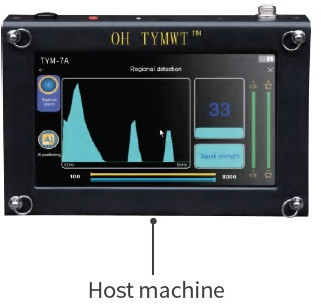

TYM-7A Multifunctional Water Leak Detector is a versatile intelligent water leak detection device specifically designed for pressure pipeline water leakage. This series of instruments is suitable for the detection of water leakage in pressure pipelines such as tap water, fire pipeline, and heating. By collecting and analyzing the sound and leakage signals at the leak points, it can achieve accurate positioning. In addition, it also has a tracing gas detection mode, which further enhances its precision in locating leaks. It effectively solves the problem of water leakage detection in pressure pipelines and is a versatile indoor and outdoor intelligent pipeline leakage detector

Advantages

• Suitable for indoor and outdoor use, versatile
• Suitable for indoor and outdoor use, versatile
• AI intelligent locating mode, easy operation, quick locat ion of leakage points
• Dual-functionality of gas and sound leak detection, suitable for various leakage detection environments Dual display mode for day/night, adapts to changes in external light ing conditions
• Leakage results can be exported to computers for convenient leakage report generation
• Frequency can be individually adjusted according to user needs to reduce sound inter ference
