Water Leak Detector
Leading Manufacturers, Exporters, Wholesaler and Retailer of PQWT - Water Leak Detector and TYM - Water Leak Detector from Hyderabad.
| Business Type | Supplier, Trader |
| Power Source | Battery |
| Application | Water Leak Detection, Outdoor |
| Type | Water Leak Detector |
| Brand Name | AMRUTHA PQWT |
| Material | Stainless Steel |
| Color | Black |
| Condition | New |
| Frequency range | 1-1000hz |
| Power | 2w |
| Weight | 0.7kg |
| Working Tempareture | -20℃~ +50℃ |
| Packaging | Box |
requency
Range 1-10000HZ
Gain 10 levels adjustable
Volume 10 levels adjustable
Operating
Mode General Detection; Locating Mode
Display 7 Inch HD digital touch LCD scree
| Business Type | Manufacturer, Supplier |
| More Info. |  View |
| Color | Black |
| Power Source | Electric |
| Application | Water Leak Detection, Indoor |
| Display Type | Digital |
| Type | Water Leak Detector |
| Country of Origin | India |
| Brand Name | AMRUTHA TYM |
| Power | 1W |
| Dimensions | 40mm |
| Weight | 0.35kg |

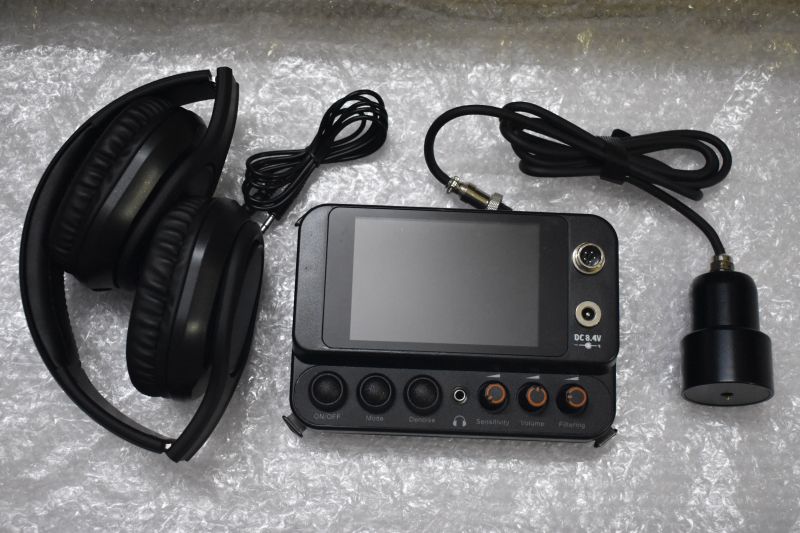

Introduction
TYM-A series water leak detector is a new generation of intelligent leak detector specially designed for leakage of indoor pressure pipes. This series of instruments is suitable for leak detection of indoor tap water and floor heating pipes. It has keen sound and signal acquisition and analysis capabilities, and can quickly and accurately locate leaks. Equipped with a clear display screen and simple operation interface, it is convenient for users to understand the test results intuitively. Different detection modes and parameters can be set according to actual needs to adapt to various complex pipeline environments.
Working principle
TYM-A series indoor water leak detector is mainly used for indoor ground detection. The sensor collects pipe sounds and signals,the collected signals are processed by the host and displayed on the host machine in the form of waveform, spectrum, and intensity signal column. At the same time, the sound will be input to the earphones through the host, and the three knobs of sensitivity knob, sound knob and filter gear will be adjusted to cooperate with each other, and the leakage point will be located through "listening" and "seeing".
Description
- 【ON/OFF 】 button: Turn on/off the host.
- 【Mode】 button: Switch the display mode. Click once to switch the interface, and you can switch between the intensity, spectrum and waveform interfaces.
- 【Denoise】 button: The instrument turns on the noise reduction function by default. Press the button to turn off the noise reduction function.
- 【Headphone】 interface: used to connect headphones.
- 【Sensitivity】 Adjustment knob: Adjust the sensitivity of the display area. The higher the sensitivity, the larger the displayed value. Clockwise sensitivity +, counterclockwise sensitivity -.
- 【 Volume 】 Adjustment knob: Adjust the listening volume. Clockwise volume +, counterclockwise volume -
- 【Filtering】 adjustment knob: 4-le vel filter adjustment, the gear increases clockwise, and the envir onmental noise reduction effect is enhanced. Counterclockwise the gear decreases and the environmental noise reduction effect is weakened.
- 【Charging port】 used for charging the host.
- 【Aviation socket】 Connect the probe, and the navigation sockets must correspond one to one.
- 【Strap buckle】 Connect the strap.
