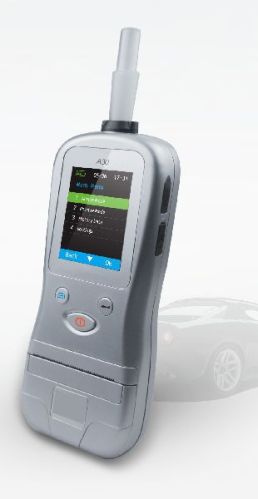

Amrutha Alcohol with Printer

Details :

• Touch Screen with Inbuilt Thermal Printer
• 20,000 Memories with GPS.
• Data collection report using PC Software utility

Measurement Range (BAC)

• Accuracy: （0-550）mg/100ml BAC
• Range （0-88）mg/100ml - ± 4.4 mg/100ml
• Range （88-220）mg/100ml - ± 5 %  absolute
• Range   　  >220 mg/100ml - ± 20 % absolute

Measurement Range (BrAC)

• Accuracy : （0-2.5）mg/L BrAC
• Range  （0.00-0.40） mg/L - ± 0.020 mg/L
• Range  （0.40–1.00） mg/L - ± 5 %  absolute
• Range    　  >1.00 mg/L - ± 20 % absolute

Condition：

• Operation Temperature Range : - 5  °C - +50 °C
• Storage Temperature Range : - 30 °C - +70 °C
• Best Temperature for stock (sensor) : 0  °C - +25 °C
• Condition pressure : 600- 1400 hPa

Other Parameter

• Pre-heating time : about 5 seconds
• Zero time : about 3 seconds
• The previous measure is 0 mg/100ml ： about 5 seconds
• The previous measure is 100 mg/100ml below ： about 7 second

Product Features

• Active mode and passive mode
• Menu operation, easy to use
• Data review and print on the device
• Data memory for 20,000 measurement
• Wireless printer

Warranty : “ONE YEAR” from the date of supplies Against Workmanship and Manufacturing defects only. There is no warranty for accessories from the time of delivery. There is no warranty for physical damage, liquid seepage, any power fluctuations while charging and misuse.

 Details :

• Electrochemical / Fuel Cell Sensor: The fuel cell is a porous disk with a thin layer of platinum black on both faces and any alcohol that comes in contact with the cell's surface is broken down chemically. For each molecule of alcohol that is broken down a given number of electrons are freed during the process. The numbers of electrons generated are in proportion to the amount of alcohol.

• Built-in Printer: Can be detached from alcohol analyzer and become a standalone wireless printer.

• Quick and precise analysis: Ensure a high sensitivity to alcohol and stable & reliable working life.

• Easy to read: Waveform graphic display and make the analyzer fancier and clearer
• Memories: Min50, 000 memories with full information: - Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc…
• Measurement precision:Standard deviation +/–0.025 mg/L or +/–5 % of the measurement Drift: typically, < 0.8 % of the measurement value/month

 Warranty : “ONE YEAR” from the date of supplies Against Workmanship and Manufacturing defects only. There is no warranty for accessories from the time of delivery. There is no warranty for physical damage, liquid seepage, any power fluctuations while charging and misuse.

Key Specifications/Special Features

• ​Built-in printer
• Built-in GPS
• 50,000 tests records stored in memory
• 4.3" color touch screen
• 3G/Wi-Fi
• Press-button mouthpiece release
• Photo capture
• Provide evidential records by auto capturing while subject blowing
• USB PC connection

Units of Measure

• BrAC: mg/L, or any other units
• BrAC: grm%, mg/ml, mg/100ml, or any other units

Accuracy

• 0-0.10% BAC: +/-5%
• 0.10-0.15%BAC: +/-8%
• >0.15: +/-10%

Warranty : “ONE YEAR” from the date of supplies Against Workmanship and Manufacturing defects only. There is no warranty for accessories from the time of delivery. There is no warranty for physical damage, liquid seepage, any power fluctuations while charging and misuse.

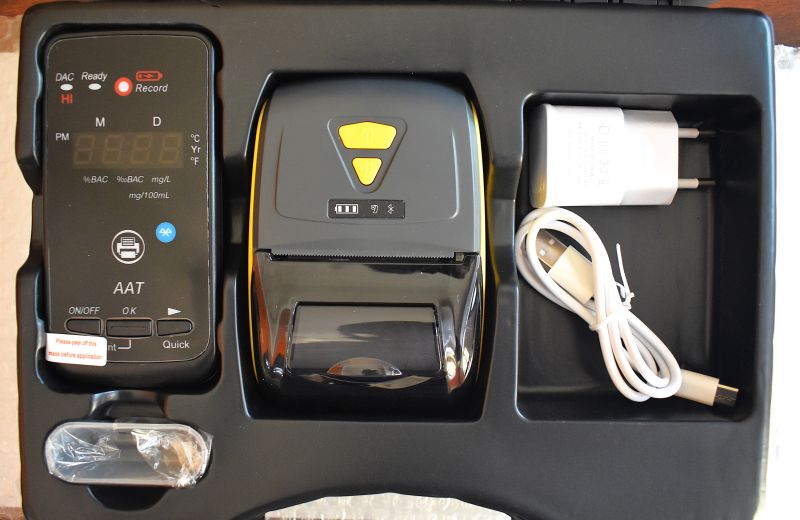

Details :

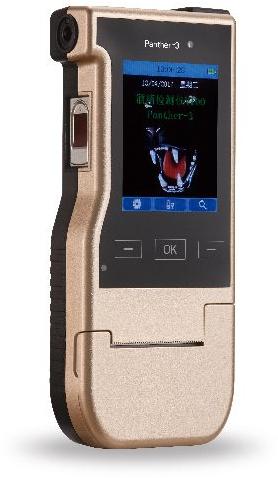

• Panther -1 Device - 1 No
• User Guide - 1 N0
• Reusble Sampling Cups - 2 Pieces
• Dc Car Charger -   1 No
• Paper Rolls -   4 Nos
• Ac Charger -   1 No
• Pc Connection Cable-    1 No
• Mouth Pieces - 10 Nos.

Warranty : “ONE YEAR” from the date of supplies Against Workmanship and Manufacturing defects only. There is no warranty for accessories from the time of delivery. There is no warranty for physical damage, liquid seepage, any power fluctuations while charging and misuse.

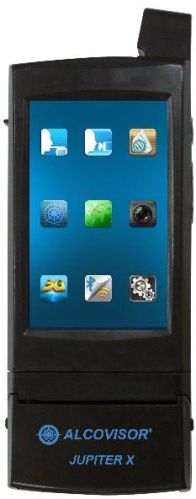

Features:

• Electrochemical/fuel cell sensor, highly specificity to alcohol, unaffected by other possible breath contaminants.
• Fast, accurate and stable testing performance
• With Camera / Fingerprint identification
• Large memory capacity.
• 3G real-time monitoring
• 3.2 inch 240X320 TFT LCD touch screen provides intuitive operation.

Memory capacity, storage of more than 40000 test records. Any tests results can be easily recalled, printed and downloaded to computer. Every test record can be transferred to PC data manage software in real time through 3G (GPRS) network enables real-time monitoring. Three buttons simple test operation system Two testing modes: evidential and screening. Built-in thermal printer/Built-in Dot Matrix printer (Optional).Large battery capacity, ensure 24 hours of continuous work. Mouthpiece can be automatically ejected.

Warranty : “ONE YEAR” from the date of supplies Against Workmanship and Manufacturing defects only. There is no warranty for accessories from the time of delivery. There is no warranty for physical damage, liquid seepage, any power fluctuations while charging and misuse.

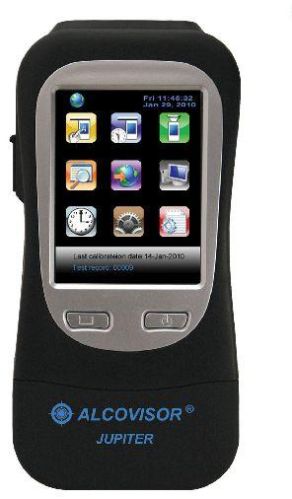

Key Features

• Built-in Printer (optional)
• Built-in GPS
• 36,000 tests records stored in memory
• 3.2" Touch Screen
• USB PC connection

Accuracy

• 0-0.10% BAC: +/-5%
• 0.10-0.15% BAC: +/-8%
• >0.15%: +/-10%

Warranty : “ONE YEAR” from the date of supplies Against Workmanship and Manufacturing defects only. There is no warranty for accessories from the time of delivery. There is no warranty for physical damage, liquid seepage, any power fluctuations while charging and misuse.

We are the main supplier of this product.
